Calpeda NG Self-Priming Jet Pumps - Three Phase

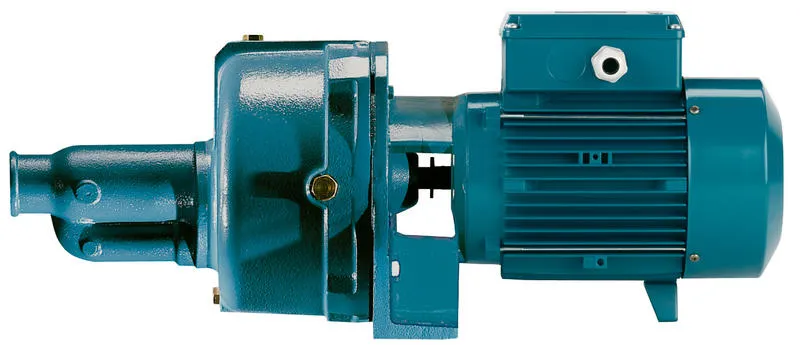

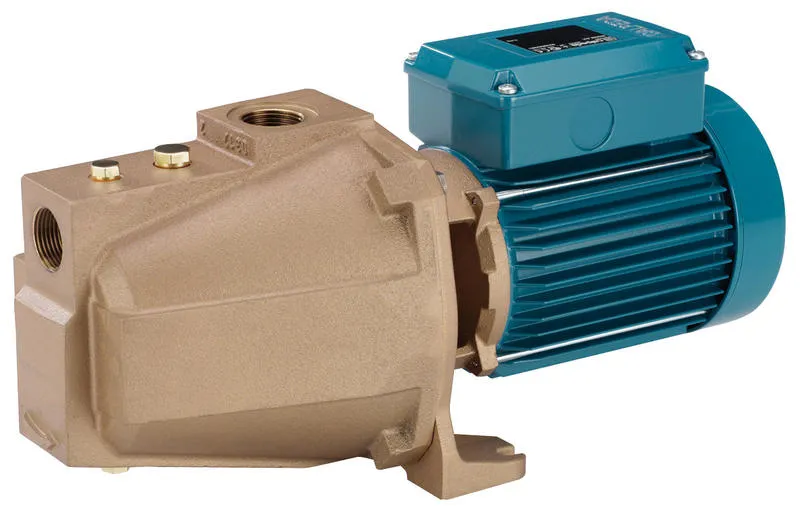

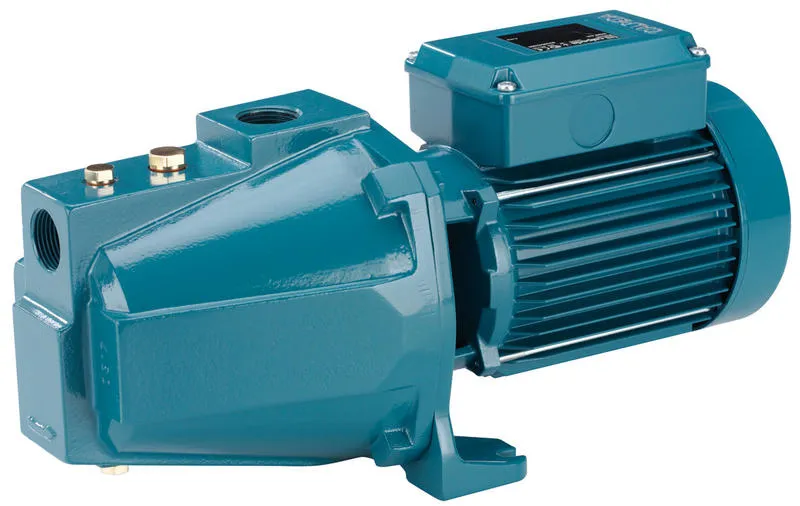

Close-coupled self-priming shallow well jet pumps with built-in ejector. NG: version with pump casing and lanter bracket in cast iron. B-NG: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
Applications
- For drawing water out of a well.
- As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).
- For clean liquids or slightly dirty surface water.
- For garden use.
- For washing with a jet of water.
Operating conditions
- Liquid temperature up to 40° C.
- Ambient temperature up to 40° C.
- Maximum permissible working pressure up to 10 bar.
- Continuous duty.
