TECHNICAL DATA

• Mains voltage: 1 x 240 V, 50 Hz
• Enclosure class: IP65
• Insulation class: F
• Start/stop frequency: Max. 20 per hour
• Controller: Pressure Switch set at 2.2 bar cut-in

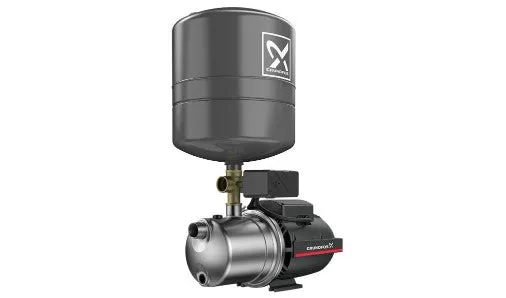

Grundfos JP 4-54 PT-V Jet Pressure Pump with Pressure Switch & 20L Tank

The Grundfos JP is a compact booster pump designed for domestic and garden use. The booster unit consists of a Grundfos JP self-priming, composite, single-stage jet-pump, pressure switch and 20L tank.

Components :

• Self-priming JP pump
• 20 L diaphragm tank
• Pressure switch (cut-in pressure set at 2.2 bar) and pressure gauge
• Cable 1.5 m with plug
